How can the sun produce so much energy over such a long timelink to a key question

Key points: Source of energy of the sun; how the energy gets to the surface; hydrostatic equilibrium

By 1900, scientists had realized that:

a. chemical processes like burning could produce energy at the sun's rate only for about 3 million years

b. gravitational shrinkage would not produce energy at a constant enough rate -- changes would be evident over only a few million years

Explaining how the sun could produce so much energy required advances in physics!

Einstein and Special Relativity

Recall Einstein's relation between mass and energy:

E = mc2 (E = energy in watts m = mass in kilograms c = speed of light in meters/sec)

Mass and energy are equivalent and can be converted into each other. In the 1930s, astronomers realized that Einstein's Theory held the key to how the sun and stars produce their energy:

What actually happens to make the energy of the sun?

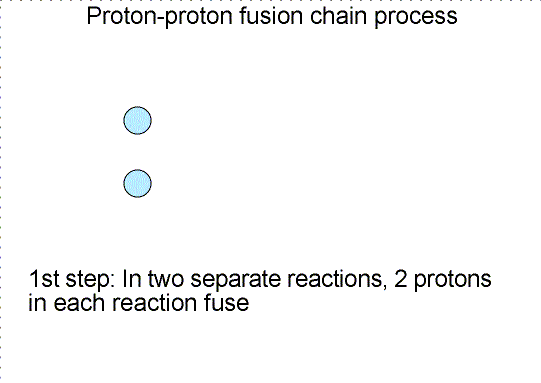

animation of the critical steps in the p-p chain Hydrogen fusion, often called the proton-proton chain, combines hydrogen nuclei into helium ones inside the sun. In addition to producing light in the form of gamma-rays, other particles such as neutrinos are produced (see below). When 4 atoms of hydrogen are converted into one atom of helium, a small portion of the mass is converted to energy. Using this process, a star can produce large amounts of energy for a long time.buttonbook.jpg (10323 bytes)This is an example of nuclear fusion.(From Nick Strobel Go to his site at for the updated and corrected version.) (Deuterium is an "isotope" of hydrogenbuttonbook.jpg (10323 bytes))

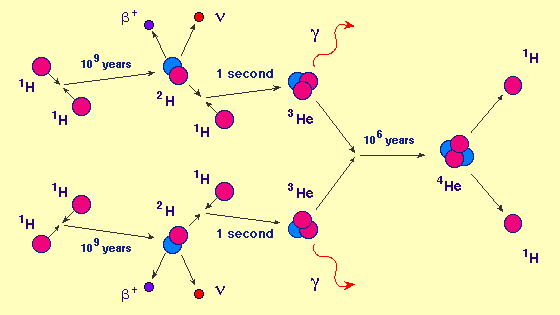

reactions in proton-proton fusion chain A summary of how it works, showing all the reactions and how long it takes for them to occur, is to the left. (From U. Tenn Ast  162,

In stars more massive than the sun, another reaction chain can be important in converting hydrogen to helium. In it, carbon, nitrogen, and oxygen isotopes are critical links although the final mix of isotopes is not modified. In analogy with terminology in chemistry, they are called catalysts. The reaction chain is the "C-N-O cycle".

Why doesn't this happen on Earth?

For two H nuclei, protons, to collide hard enough to overcome their natural electrical repulsion, they must be moving very fast.

==> need very high temperatures

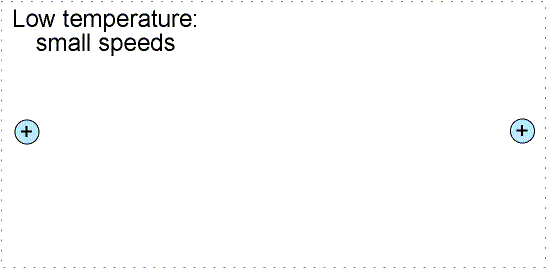

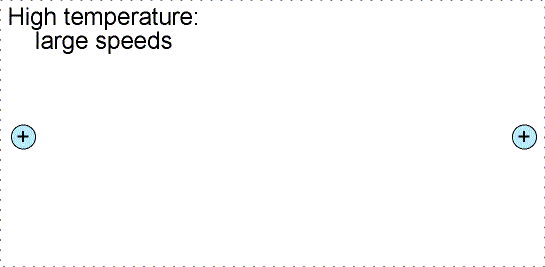

animation: fusion is impossible at low temperatures animation: fusion becomes possible at the high nuclear speeds due to high temperature

(From Nick Strobel Go to his site at for the updated and corrected version.)

To have enough collisions to generate significant energy requires high density

==> reactions can occur only in the centers of massive objects like stars or (at least so far) in special machines where they can be sustained for only a very short time because the energy released disrupts the continuing reaction

Only about 10% of the mass of the sun has temperatures and pressures sufficiently high for nuclear reactions to occur.

cutaway of the sun

The core of the sun, where

the fusion takes place, is

overlaid by a huge amount

of hot hydrogen and helium


(From MSFC,

Nonetheless, we can study the reactions in the core by detecting neutrinos from the sun.

neutrinos are made when two protons fuse Neutrinos react extremely weakly with other forms of matter. They can escape from the center of the sun virtually unimpeded and they carry away about 2% of the energy from the fusion reactions occurring there. (From Nick Strobel. Go to his site at for the updated and corrected version.)

Neutrinos are NOT electromagnetic radiation or matter. They are another type of fundamental particle, similar to photons, but also different from them in some important ways such as their ability to travel through matter without interacting, so they can emerge from the center of the sunbuttonex.jpg (1228 bytes).

Neutrino Detectors

Because neutrinos emerge from the very center of the sun, measuring how many of them escape should allow us to probe our understanding of the reactions taking place there! Although neutrino detectors have found fewer neutrinos than expected, we think it is the neutrino physics that was wrong and that our models for the interior of the sun are very accurate.

How does the rest of the energy escape from the center of the sun?





There are two zones with different types of energy transport: the radiative zone and the convective one.






Cutaway of the sun
sun-core.gif (74725 bytes) Well inside the sun, the gas is so hot it is fully ionized (electrons are all stripped from the atom nuclei), so the atoms are poorly absorbing and the energy is carried by gamma rays that bounce their way off the free electrons. This region is called the radiative zone; within it, there are no large-scale gas motions. About 85% of the way out, the temperature drops to where electrons are retained in atoms and the gas atoms absorb the energy efficiently. The gas gets so hot it expands and rises convectively toward the surface in large-scale blobs. The energy is carried across this "convective zone" by this "boiling" of gas. (From H. Haubold and A. M.Mathai, Encyclopedia of Planetary Sciences, (Page 786 - 794), 1997 Chapman & Hall,
convect31.gif (1622306 bytes) The final stage in the convection is the granules, which are just hot gas rising to the surface. This simulation shows the process. (Adapted by G. Rieke from A. Malagoli,
grancutaway.jpg (159287 bytes) Energy rises to the surface as gas wells up in the cores of the granules, and cool gas sinks around their edges (From Pat Hall,

The motions from convection drive a lot of the magnetic behavior such as sun spots. The convection results in electric currents of protons and electrons that produce the strong surface magnetic fields and drive the surface activity.

Diagram of magnetic fields on the surface of the sun Electrically charged particles follow the magnetic field. Where the fields are strong, they suppress convection and reduce the flow of heat, creating a relatively cool region that appears as a sunspot. Charged gas atoms and molecules follow the field lines that connect north and south poles, creating arcs and loops far above the solar surface. {From The Essential Cosmic Perspective, by Bennett et al.)

Why the Sun is so Stable

So long as adequate amounts of hydrogen remain in the sun's core, it will continue to produce energy at nearly the current rate.

sunpulse.gif (147086 bytes) The sun's output is so stable (variations of less than a percent) because of hydrostatic equilibrium. The outward pressure of hot gas comprising the sun exactly balances the force of gravity which tries to make the sun grow smaller.buttonbook.jpg (10323 bytes)

In the stars like the sun, when the star shrinks the core pressure and temperature increase and that increases the pressure, resisting the shrinkage. When the star swells, the core pressure and temperature drop and reduce the pressure, and gravity makes the star stop swelling. (animation by G. Rieke)

If the sun produced energy more rapidly in its core, it would be hotter. Then the pressure would increase and the core would expand. The larger, lower density core would have fewer proton-proton collisions, reducing the rate of reactions, and causing the production of energy to decrease. Thus, the energy output is self-regulating.

animation of hydrostatic equilibrium The structure of the sun adjusts until the gravitational "pull" towards its center is just balanced by the "push" of the gas pressure outward. Fortunately, this results in a very stable state, called hydrostatic equilibrium.

Good link on the sun:

Test your understanding before going onbuttongrad.jpg (11232 bytes)

Aten, Egyptian god of the sun,





Bright star Alcyone from the inlaid star map at Hoover Dam,(G. Rieke)
