Earth as a Planet

Key points: Interior structure of Earth; differentiation; plate tectonics; getting and retaining an atmosphere

(From NASA, APOD: http://antwrp.gsfc.nasa.gov/apod/ap950622.html)

Looking outward to the blackness of space, sprinkled with the glory of the universe of lights, I saw majesty - but no welcome. Below was a welcoming planet. There, contained in the thin, moving, incredible fragile shell of the biosphere is everything that is dear to you, all the human drama and comedy. That's where life is; that's where all the good stuff is.

- Loren Acton, solar physicist and astronaut

Earth as viewed from the last moon expedition, Apollo 17
bluemar1.gif (1825224 bytes) ==> Because we live on Earth, we know the most about it, and it forms the cornerstone of our knowledge in comparative planetology, where we try to understand planets in depth by comparing their behavior with that of the earth.

(From C. Mayhew and R. Simmon, http://visibleearth.nasa.gov/- a recommended site. To see the full movie:link to movie)

Interior of the earth

Average density of the earth: 5.52 grams/cm3. The surface rocks have much lower density, about 3.3 grams/cm3, so the interior must have much more dense material      (compared with 1.00 grams/cm3 for H2O, 2.7 grams/cm3 for Al (aluminum), 7.8 grams/cm3  for Fe (iron))

Most of what we know about the interior has been deduced from seismic wave data rather than direct measurement. When an earthquake occurs, it sends waves through the earth that reappear at the surface. The way these waves are modified in their travels through the center of the earth can be used to tell what the interior is like.

Animation of P-wave (wave in pressure) For example, we can map the size of the liquid core by studying the types of waves. Liquids cannot support the side-to-side motions that make S-waves, while P-waves can travel through both liquids and solids.


Animation of S-wave (surface wave)


seismic.gif (317199 bytes) The size of the liquid core is measured by seeing where the S-waves disappear, while the nature of the core (type of material, liquid or solid) can be studied by seeing how the P-waves are refracted (a process that works with earthquake as well as light waves) as they enter and pass through it. The inner, solid core is deduced from refraction of P-waves due to their much higher velocity in the solid than in the liquid (animation by G. Rieke). The actual propagation of earthquake waves is very complex, producing complex "seismograms" for such studiesbuttonbook.jpg (10323 bytes), containing lots of information about the interior of the earth. en00500_1.jpg (18578 bytes)(reload to restart lecture animations) (from Saadia Baker and Michael Wysession, http://epsc.wustl.edu/~saadia/page2.html

Many more details of earthquake, or "seismic" waves expand on this picture buttonbook.jpg (10323 bytes)

Such studies show that Earth consists of

Seismic studies have been refined to provide a high degree of accuracy in this picture, as well as many more details.


The core region is very hot, about 6500K (warmer than the surface of the sun!). The core is largely liquid metal, but the high pressure makes the inner core turn to solid despite the high temperature. The heat is a combination of energy trapped at the time of formation and energy released by radioactive decay.

(From Calvin Hamilton, Solar Views, http://www.solarviews.com/cap/earth/earthfg2.htm)


Animation showing differentiation of Earth A trend in the earth's interior

Deeper ===> find higher density materials

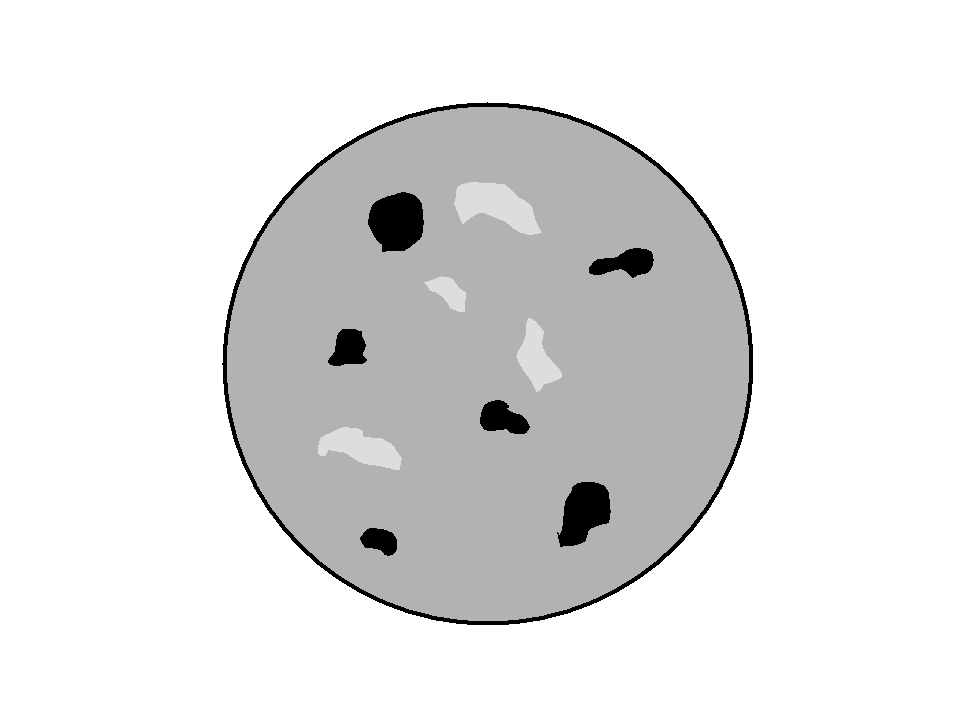

This is the result of differentiation -- a process driven by gravity. When a planet is young and hot enough to be semi-molten, denser materials (shown in black) sink to the center and lighter materials float higher up. As the planet cools, it solidifies but can be left with a hot, molten (or solid) metallic core and a surface of relatively low density, light rock (the crust) "floating" on a thick semi-molten zone (the mantle). (animation by G. Rieke)

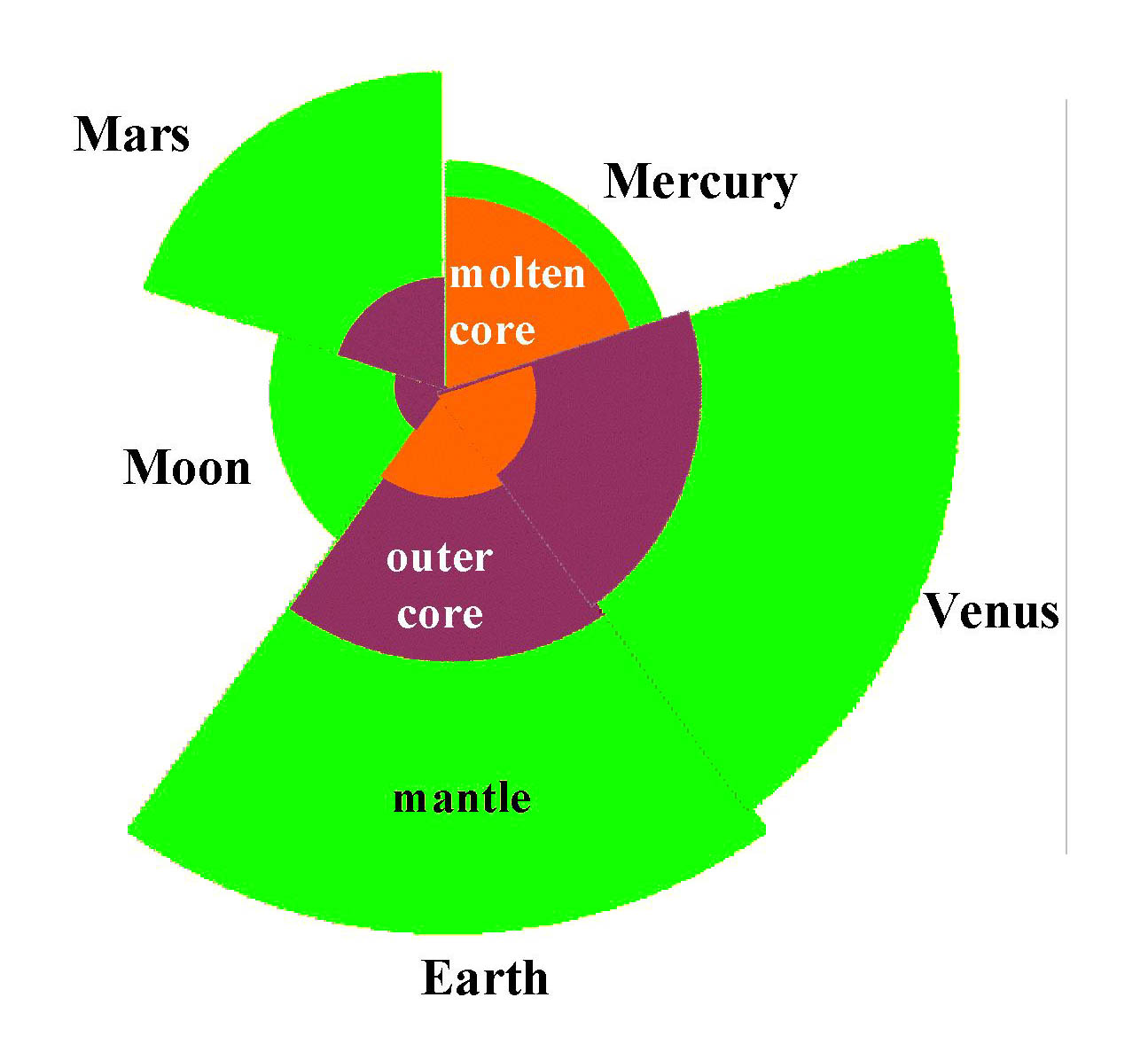

terrplan.jpg (121228 bytes) The interiors of the other terrestrial planets are similar to that of the earth, although Mars has cooled so far its core is no longer molten. The composition of the moon is similar to that of the crust of the earth, and any formerly molten core has also cooled and solidified. In general, small bodies cool more quickly than large ones because there is less material around their cores to trap the heat of their formation.
Differentiation works on a detailed scale also - there is a steady increase in the density of the rock as we go below the surface toward the center of the earth. One key layer is at 400 km, where the pressure causes the rock form olivine to change to spinel, which is 8% more dense. Another change to denser rock occurs at 700 km. Notice how slowly the density changes with increasing depth above the olivine phase change discontinuity - this region is the "upper mantle." As shown schematically here, continents float on top of the upper mantle because they have still lower density. The shallow increases of density with depth in the upper mantle and between the 700 and 400 km discontinuities are important in powering plate tectonics, which moves the continents around. When rock at the bottom of one of the constant-density zones is heated and expands, it can easily become less dense than the rock above it, so it tends to rise, driving the convection in the mantle that makes the plates move.  (illustration by G. Rieke, after J. Tarney http://www.le.ac.uk/geology/art/gl209/lecture1.html) earthdens.jpg (38177 bytes)

Plate Tectonics

Because the earth's crust floats on the mantle and because the mantle is plastic (that is, semi-liquid), the crust can move around. The movements are slow and were not noticed until relatively recently. buttonbook.jpg (10323 bytes)

The crust is subdivided into plates. These plates can move as separate objects on the mantle. They can bump into each other or they can move apart.

mid_atlantic.gif (350728 bytes) Early evidence for plates came from noticing how the edges of continents look almost like pieces of a jigsaw puzzle that should fit together (from Tripod, http://r80f51.tripod.com/id2.html).

Volcanoes and earthquakes are common near plate boundaries. Faults are cracks along plate boundaries.


Drawing of convection cells in the mantle of Earth Picture of a pot of boiling water Convection in the hot rock in the mantle makes the plates move (far left).

(From The Essential Cosmic Perspective, Bennett et al.)

The process is similar to a "rolling boil" in a pot of water (left).

animation of convection in Earth's mantle

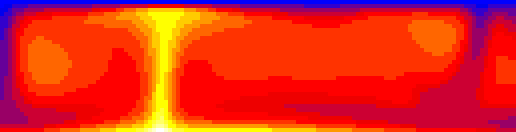

Here is a simulation of convection in the mantle of the earth. Hot rock (yellow) rises and cool rock (blue) falls. The rock is at 1000 to 2000o C and creeps slowly; the rate of motion is a few centimeters per year (the simulation shows millions of years). The convection occurs because of the slow change of density with depth in the upper mantle, and between the 700 and 400 km discontinuities. As a result, a hot zone of rock at the bottom of one of these zones expands enough so its density becomes less than that of the surrounding rock and it rises, or floats, toward the surface of the earth.  (From G. Houseman, Monash University Earth Sciences, http://www.earth.monash.edu.au/~greg/Conv.html)
Diagram of upflow of magma and spreading of continental plates

The crust spreads along mid-

ocean ridges, and molten rock

flows in and fills the void

helping the spreading

to continue (figure from http://volcano.und.nodak.edu/vwdocs/vwlessons/lessons/Plates/Plates3.html, Volcano World)

Animation showing spreading of plates atlanticprofile.jpg (70864 bytes)

The animation to the left shows a crack where hot molten rock escapes from the interior and pushes apart the surface in opposite directions from the crack. (From USGS, http://wrgis.wr.usgs.gov/docs/usgsnps/animate/pltecan.html). The image on the right shows how such a crack, a "mid-oceanic ridge", runs right down the center of the Atlantic Ocean and powers the spreading of the ocean floor to separate the Americas from Europe and Africa. (from Alan Colville, http://www.calstatela.edu/faculty/acolvil/index.html)

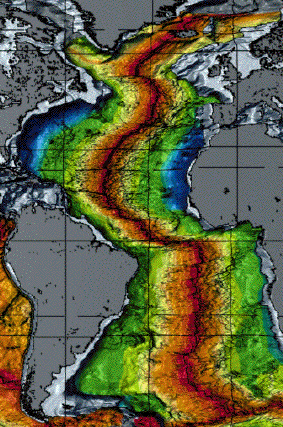

Color coded age of rocks on floor of Atlantic Ocean Various arguments let scientists determine the age of surface rocks. Here is a map of the floor of the Atlantic Ocean, with the youngest in red, shading to orange, yellow, green, and blue for progressively older ones. The blue rocks date to the Jurassic age, 150 - 200 million years ago, and show when the Atlantic started to grow. (From the University of California at Berkeley, Museum of Paleontology, http://www.ucmp.berkeley.edu/tectonics/atlantic.html)

Due to plate tectonics, the earth's surface has been cycled up and down through the crust and any old structures will have disappeared. Wind and water erosion further heighten changes in the earth's surface. 750 million years of drift are shown below:

Animation of continental drift over 750 million years











(Animation from the University of California at Berkeley, Museum of Paleontology,http://www.ucmp.berkeley.edu/geology/tectonics.html)

If the earth were perfectly round, there is enough water in the oceans to cover it completely to a depth of a couple of miles. Without plate motions, there would be an insignificant amount of "dry land", just a few volcanic islands at the tips of huge mountains coming up from the ocean floor. On a planet with abundant water, plate motions are essential to provide a large land area. Plates are made by reactions involving water and minerals that produce the relatively light rock (for example, granite) that builds our continents.

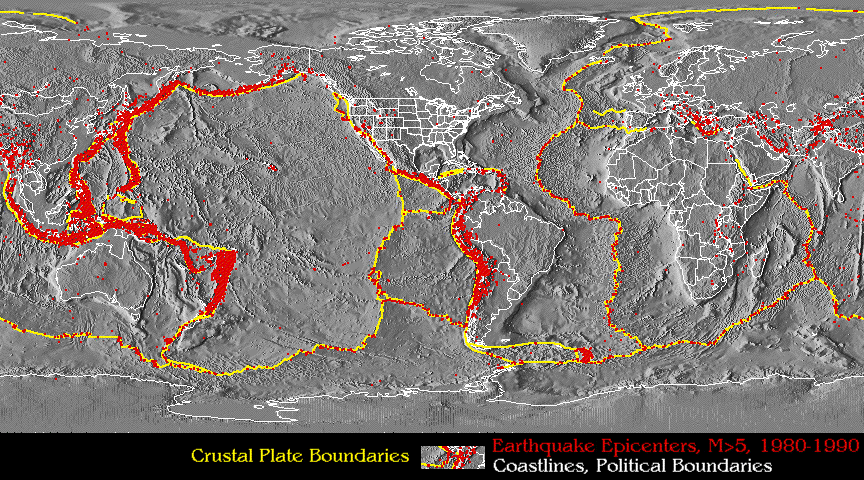

This map (from National Geophysical Data Center) shows plate edges in yellow and epicenters of strong earthquakes in red. It shows the plates very clearly. plateboundaries.gif (175362 bytes)
plateboundariesa.jpg (48344 bytes) Much of the geology of the earth is driven by processes at plate boundaries and by the upwelling of magma at hot spots and rifts through the plates. These motions keep raising the continents, which otherwise would slowly be eroded away and eventually would submerge below the ocean level. In fact, there is enough water to cover all the earth - so without tectonic plate motions we would all be under water.

(from Wikepedia, http://en.wikipedia.org/wiki/Image:Tectonic_



The molten core and trapped heat in the center of the earth produce some other interesting consequences, such as magnetism buttonbook.jpg (10323 bytes).

Earth's Atmosphere

The combination of the earth's distance from the sun and the character of the atmosphere is what makes the earth habitable.

Composition of Earth's Atmosphere (by volume)

nitrogen 78%
oxygen 21% Maintained by plants from CO2
argon 0.9%
carbon dioxide 0.03% Greenhouse gas
water 0.1-3% Greenhouse gas
ozone trace Important to absorb UV from sun

How Did Earth get its Atmosphere?

Painting of early Earth with glowing magma Materials for the atmosphere were brought to the earth by comets accreted during its formation, then released by volcanoes (From Don Dixon http://cosmographica.com/gallery/index.html). Additional late-arriving comets would have added additional material to the oceans and atmosphere.

Hydrogen and helium were quickly lost to space because of gravity of the earth was insufficient to hold them, given the temperature of the atmosphere.

Graph of composition of atmosphere over history of Earth ( From http://tefficks.dhs.org/~mia/atmosphere.htm)

We know from fossil and geologic evidence that the earth's early atmosphere had much less oxygen and much more CO2.

Three processes which changed the composition:

1) Continued volcanic activity -- volcanoes spew out water vapor, CO2, nitrogen
2) Chemical reactions -- rain water and CO2 combine to form carbonic acid which can be trapped in rocks
3) Photosynthesis -- plants take in CO2 and exhale O2 (the rise of plants is obvious in this plot of the composition of the atmosphere versus age)link to extra topic

Test your understanding before going onbuttongrad.jpg (11232 bytes)
